CFD-Rocket







CFD-Rocket is a general purpose finite element method based, unstructured grid compressible flow solver. CFD-Rocket generates hybrid triangle and quadrilateral elements for 2D computational domain and by sweeping the 2D mesh around the axis line plus pre-specified number of wings and wing cross-section shape, a 3D mesh for wings and body combinations can be easily generated within minutes. The generated 3D meshes will consist of the hexahedral, prisms, pyramids and the tetrahedral. All necessary information, such as boundary conditions, initial conditions, solid wall and farfield conditions will also be written into the generated 3D mesh file. Users can run the solver immediately after the mesh file was generated.



Capabilities



Structured or Unstructured

Hybrid Grids

Unsteady State Solution

Steady State Solution

Viscous

Flow

Inviscid

Flow

1D Planar Flow

Yes

No

Yes

Yes

Yes

Yes

1D cylindrical Flow

Yes

No

Yes

Yes

Yes

Yes

1D Spherical Flow

Yes

No

Yes

Yes

Yes

Yes

2D Planar Flow

Yes

Yes

Yes

Yes

Yes

Yes

2D Axisymmetric Flow

Yes

Yes

Yes

Yes

Yes

Yes

3D Flow

Yes

Yes

Yes

Yes

Yes

Yes

3D Conical Flow

Yes

Yes

No

Yes

Yes

Yes





Contact Email: jcbrisingr@gmail.com

Phone: 248-635-3138

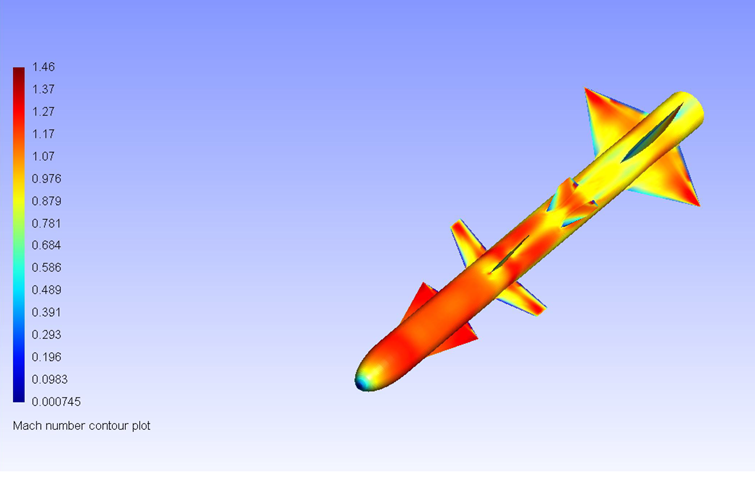

Mach 1.97 flows past NACA RM-A56G16 missile at 12o angle of attack.

Samples

Brochure

30 Days License

Updated Download

The unsteady field equation

CFD with Chemical reactions

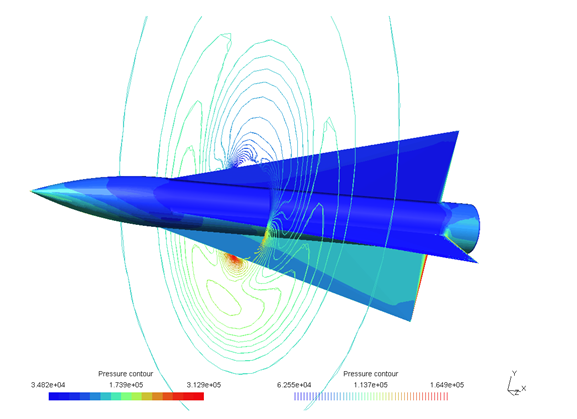

Mach 1.2 flow past the elliptical rocket at 10 degrees angle of attack.

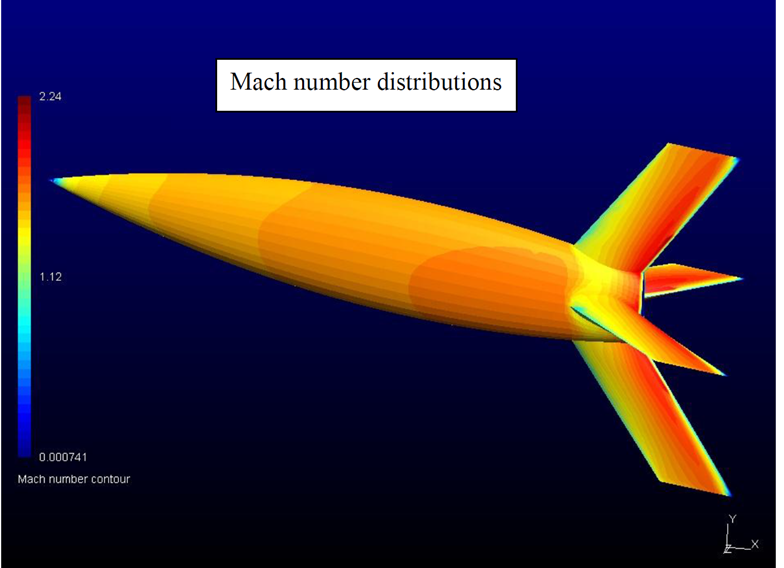

Mach 1.62 flows past NACA RM-10 missile at 2o angle of attack.


Mach 7.4 flow past a 75o swept ellipse cone at 15o angle of attack.

3D Conical Flow
