Problem:
Mach
1.2 flow past the elliptical rocket at 10 degrees angle of
attack.

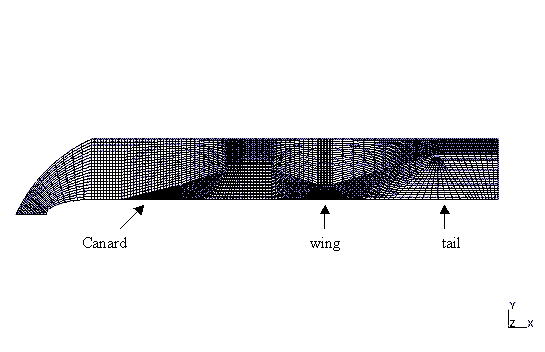

* Build 2D mesh, 4 200 elements, 4,331 nodes
* Assign tail surface and wing cross section shape
* Sweep 2D mesh around the axis to generate 3D mesh.

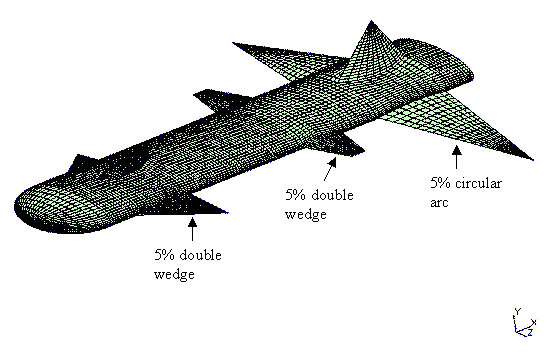

* The 3D mesh
contains 260 661 nodes and 3 000 pyramids, 249 000 hexahedron.
