Problem: Mach 1.2 and 0.95 flow past the Arconi-Hi
rocket at 10 and 5 degrees
angle
of attack.
* Build 2D mesh. 16,400 elements, 16,781 nodes * 25 minutes to generate the 2D mesh

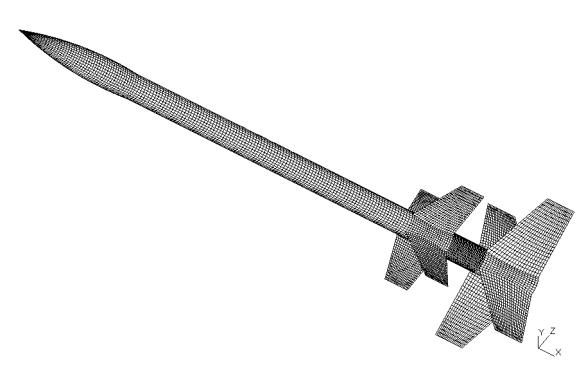

* Assign wing and tail surface * Sweep 2D mesh around axis to generate 3D mesh
* Total 3D mesh includes 64 pyramids, 2,880 prisms and 521, 888 hexahedron

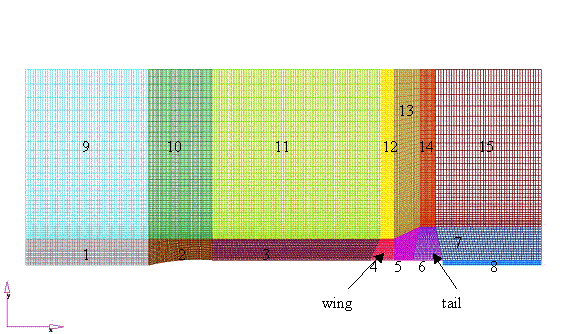

2D mesh for Arconi-Hi rocket
